PLS series

THUMBNAIL - PLS SERIES.jpg

DIMENSION

FEATURES

1. The machine is powered by Sinto Servo Motor. With this superior power generator, the operation can run smoothly leading to high reproducibility as well as reducing molten aluminum turbulence.


2. The machine is designed for flexibility and compactness. By making the upper-die rotatable, foundation pit for the machine is no longer required. As a result, efficiency of core-setting, outputting, and die-cleaning is significantly increased. Pouring area is located on the opposite side of the operator; thus, it is easier and more convenient for a pouring robot to fill in molten metal.


3. Just only "one touch" at the control panel, the machine can report the current tilting condition during die change procedure. All troublesome mechanical adjustments once needed for die change is no longer necessary.

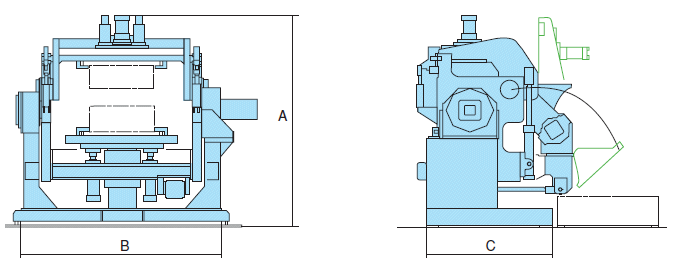

Dimensions PLS series.png

SPECIFICATION

Dimension
(mm)

Dimension(mm)

Model

Max. dimensions of die(mm)

PLSⅠ

600×600×500

PLSⅡ

800×800×650

A

B

C

Independent tilting mechanism of ladle Die cooling device

1870

1650

1040

2220

1970

1140
