ANYWHERE BLAST

Ti-MY-750

Compact Size Air Blast Machine-Easy to Use, Easy to Install, And Easy to Relocate.

VARIETY OF APPLICATION

Ti-my can be applied with wide range of abrasives in turn providing a variety of blasting application many different kind of product surface.

COMPACT SIZE

Saving installation space and Easy moving by addition casters.

INEXPENSIVE

Affordable to belonging Suitable for startup businesses & small industries.

Features

Specifications

Dimension

Description	Details

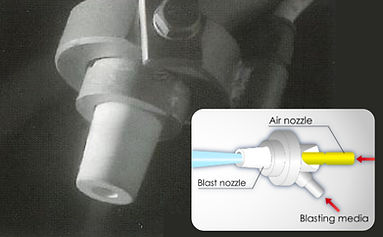

Blast device	Self-priming type Nozzle thread Dia 6.0 mm Steel (Spare: ⌀6,⌀7 ceramic)
General information	Power consumption: 0.09 kw (220V/1 phase) / Air consumption: 0.17 Nm3/min (at 0.6 MPa) 1 Nozzle Machine weight: 130 kg
Non-processable product	Titanium / Magnesium / Aluminum / Product with oil or moisture on them / Product with temperature too high can not handled by hand
Purpose of processing	Impurity removal (Ex. Descaling / Paint removal / Surface roughening (Ex. Pre-treatment for painting)
Air piping	Air equipment set (Ball valve / Filter / Pressure reducing valve / Pressure gauge)
Injection pressure	0.4~0.6MPa Low pressure makes stable injection difficult.
Abrasive used	GВ-АН (⌀600~850 µm) ~GB-A(⌀45~90 µm), AF220 (⌀45~75 µm)~AF24 (⌀600~850 µm), S-110 (⌀0.3 mm), G-120 (⌀0.2 mm)
Product size	Diameter 300 mm (Max) 9 mm. (Min)/ Heigh 300 mm (Max) / Weight 15 kgs (Max)
Injection hopper	Gravity type
Cabinet	Welding structur With Glove / Lamp / Punching table Welding structure 2 Inspection door / Peep window
